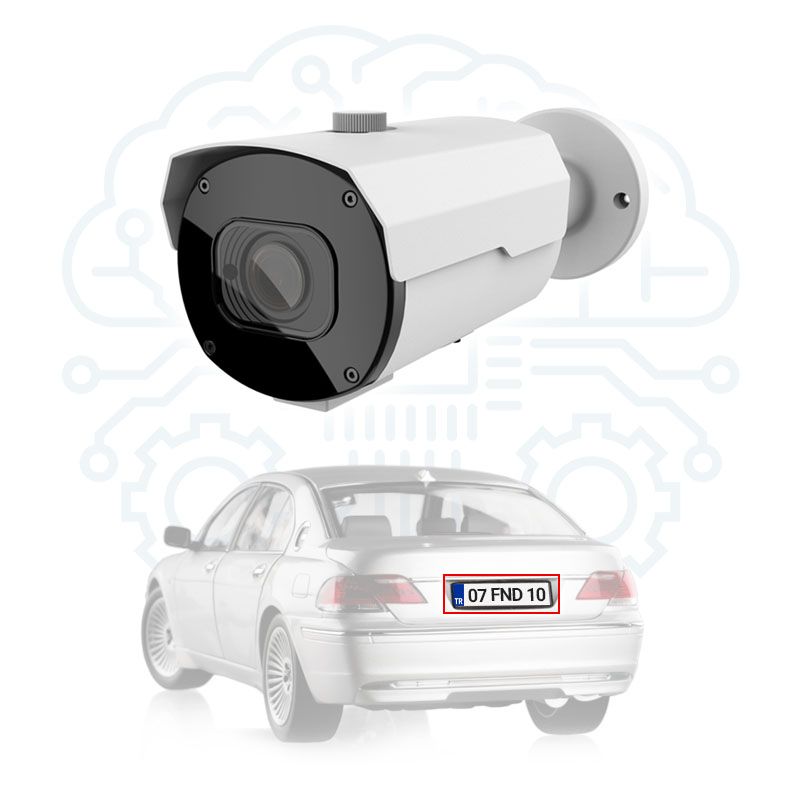

AI-Based License Plate Recognition System - FF AI PTS

FEATURES

  • AI-powered license plate recognition for high-accuracy detection
  • 5MP high-resolution imaging for clear plate capture
  • Automatic day/night operation with IR-Cut filter
  • Up to 80 m IR range for reliable night-time performance
  • H.265+ advanced video compression for optimized storage efficiency
  • IP67 waterproof and IK10 vandal-resistant housing for harsh environments
  • PoE-supported power supply for simplified installation
  • ONVIF compliant for seamless integration with third-party systems
  • Supports up to 256 GB SD card for local edge storage
  • Compatible with both PC-based and standalone operation
Resolution 5MP 2592×1944
Sensor 1/2.7" Progressive CMOS
Minimum Illumination 0.001 lux (color), 0 lux (IR)
Lens 2.7–13.5mm motorized
Angle / Field of View Horizontal 31–102°, Vertical 23–73°
Video Compression H.265+
Frame Rate 25fps
IR Distance 80m
SD Storage Up to 256GB
Protection Rating IP67, IK10
Power DC 12V / PoE (IEEE802.3af)
Dimensions 242.12 × 83.88 × 87.4 mm
Operating Temperature -40 ~ +60°C
Protocols ONVIF, TCP/IP, HTTP, RTSP, HTTPS
