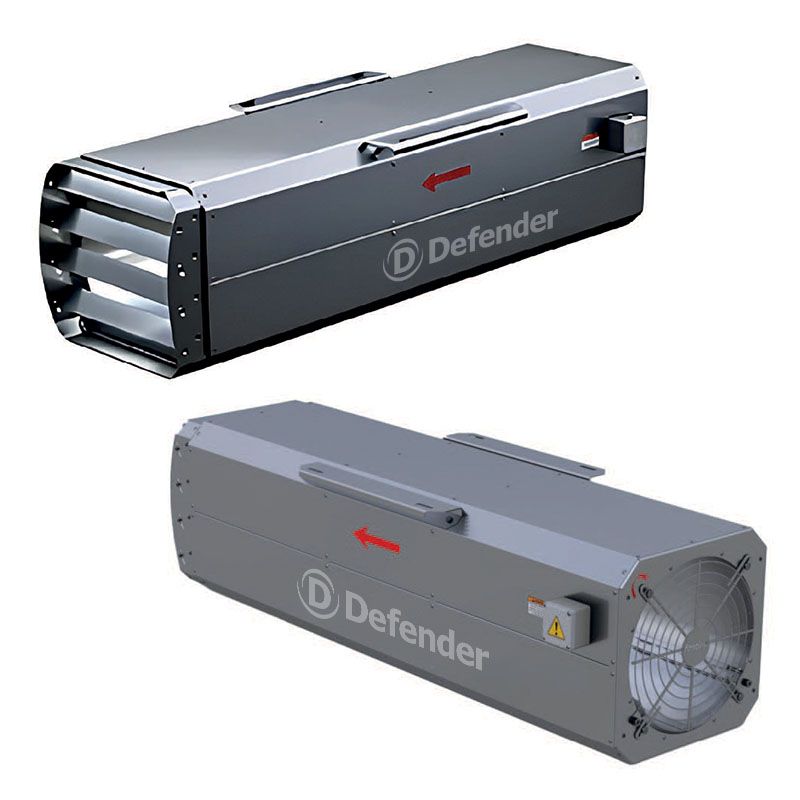

Defender Axial Jet Fan - DJ AF

FEATURES

  • Axial jet fan tested according to EN 12101-3, Fire resistant For 2 hours at 400°C and 300°C
  • Specially designed for car park smoke extraction and daily ventilation applications
  • Wide model range with diameters From Ø315 to Ø630 mm
  • Uni-directional or reversible operation with single-speed or two-speed motor options
  • Galvanized steel casing with adjustable aluminum alloy impellers
  • Integrated silencer ensuring low noise levels at high air velocities
  • IP55, Class H motor, 380-415 V / 50 Hz
  • Sliding body design for fast maintenance and easy motor access
  • Fully compatible automation integration with gas detection and Fire detection systems





MODEL A
(mm)		 B
(mm)		 C
(mm)		 D
(mm)		 E
(mm)		 H
(mm)		 L
(mm)		 THRUST
(N)		 MAX.
FLOW
RATE
(m³/h)		 POWER
(kW)		 MOTOR
SPEED
(rpm)		 MAX.
AIR
VELOCITY
(m/s)		 SOUND
PRESSURE
LEVEL
(dBA)		 WEIGHT
(kg)
DJ AF315 380 445 250 335 495 395 1615 24 4500 0.8/0.2 3000 / 1500 16 69/54 65
DJ AF355 380 485 270 375 535 435 1625 40 6500 1.1/0.25 3000 / 1500 18 74/59 85
DJ AF400 380 530 290 420 580 480 1635 60 9000 1.5/0.37 3000 / 1500 20 75/60 100
DJ AF450 380 580 320 470 630 530 1845 85 12000 2.2/0.5 3000 / 1500 21 82/67 140
DJ AF500 380 630 340 520 680 580 2060 150 17500 3/8.1 3000 / 1500 25 90/75 170
DJ AF560 380 690 370 580 740 640 2180 235 24000 6/1.5 3000 / 1500 28 91/76 230
